Door Lock of the Washing Machine with the Original Code DC64-01538A for Samsung WF1 WF6 WF7 WF8 WF9 WF0 WD - Warranty 10 Years - MONTERAL

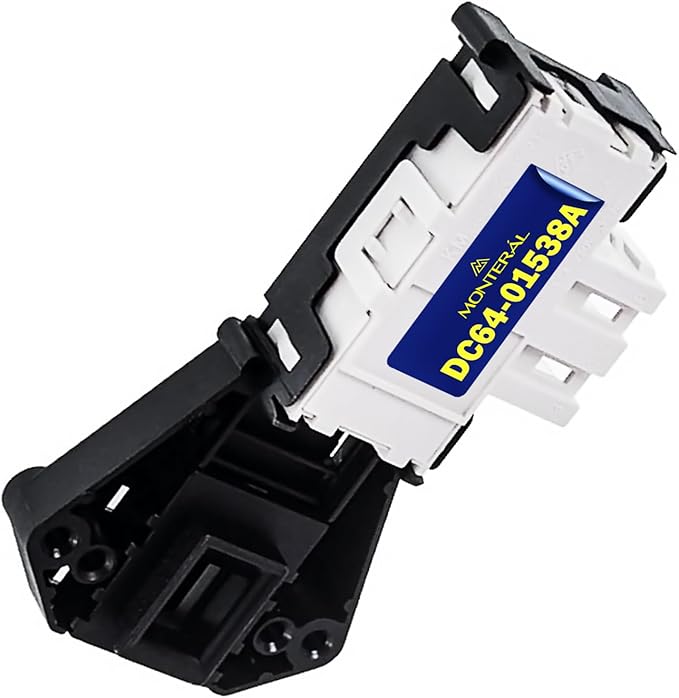

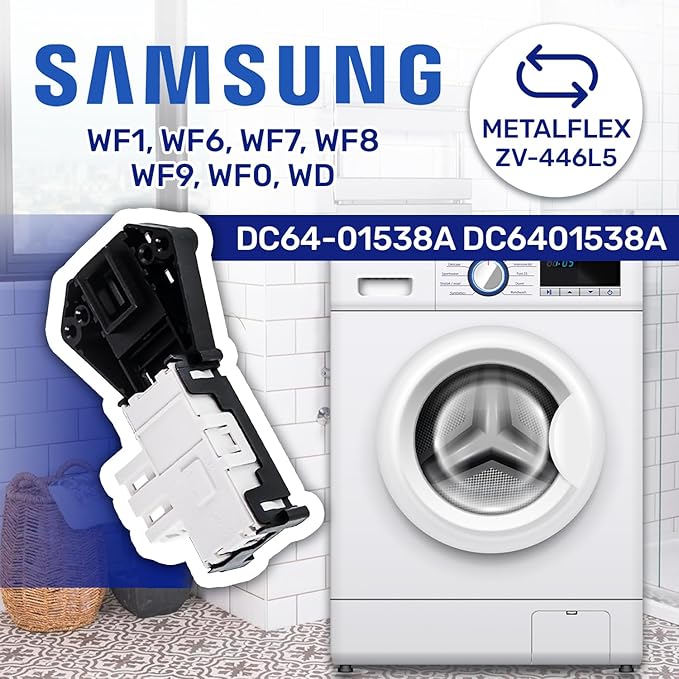

Washing machine door lock has original code DC64-01538A DC6401538A and fits for Samsung WF1, WF6, WF7, WF8, WF9, WF0, WD. Can replace the lock ZV-446L5 for Metalflex.

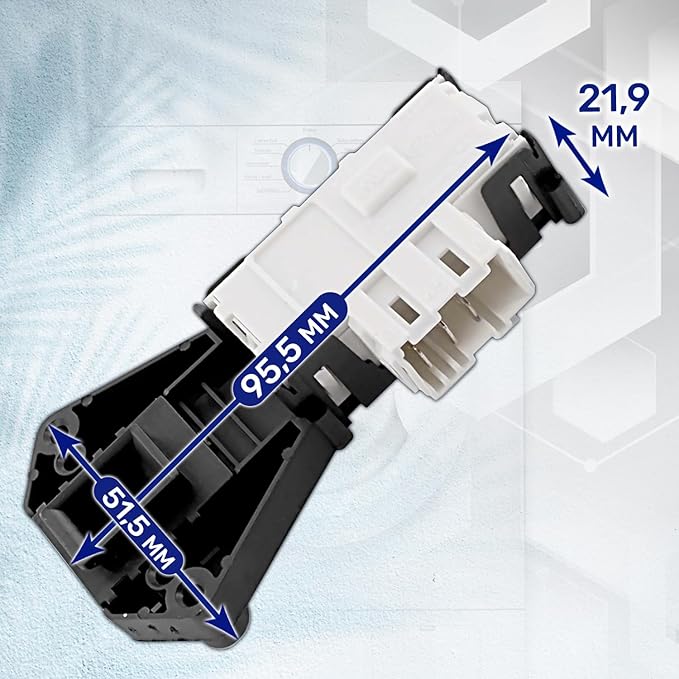

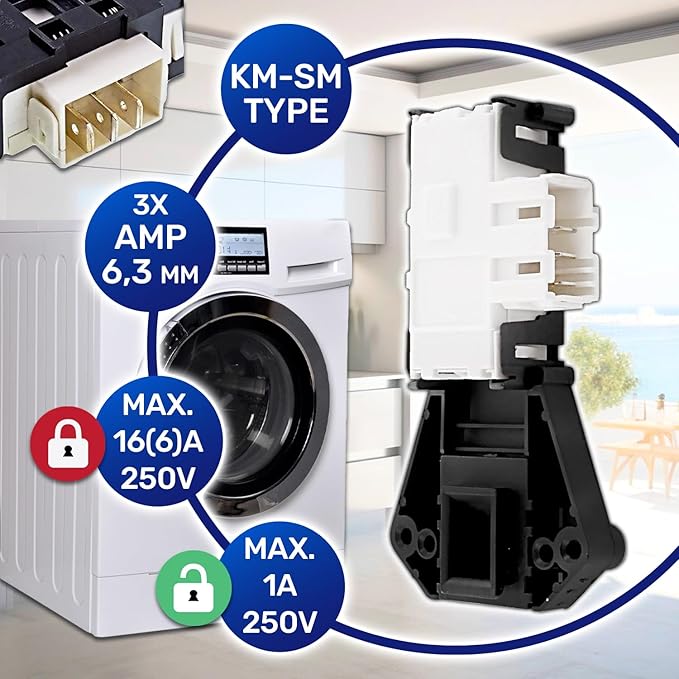

Lock size: length 95,5 mm, width 51,5 mm, height 21,9 mm. Type KM-SM. The lock has 3 contacts AMP of 6,3 mm.
The door lock can withstand a maximum current of 16(6)A and a maximum voltage of 250V when closed or switched on. It can also withstand a maximum current of 1A and a maximum voltage of 250V when the lock is open.
The main function of the door lock is to prevent the door of the washing machine from opening while it is in operation. This mechanism ensures user safety by preventing access to the drum during rotation or when there is water inside.
The order of operation is as follows: programme starts, door closes, resistor plates heat up, door lock slides open, washing ends, resistor plates return to their initial shape, plates release the lock, door opens.
